Description

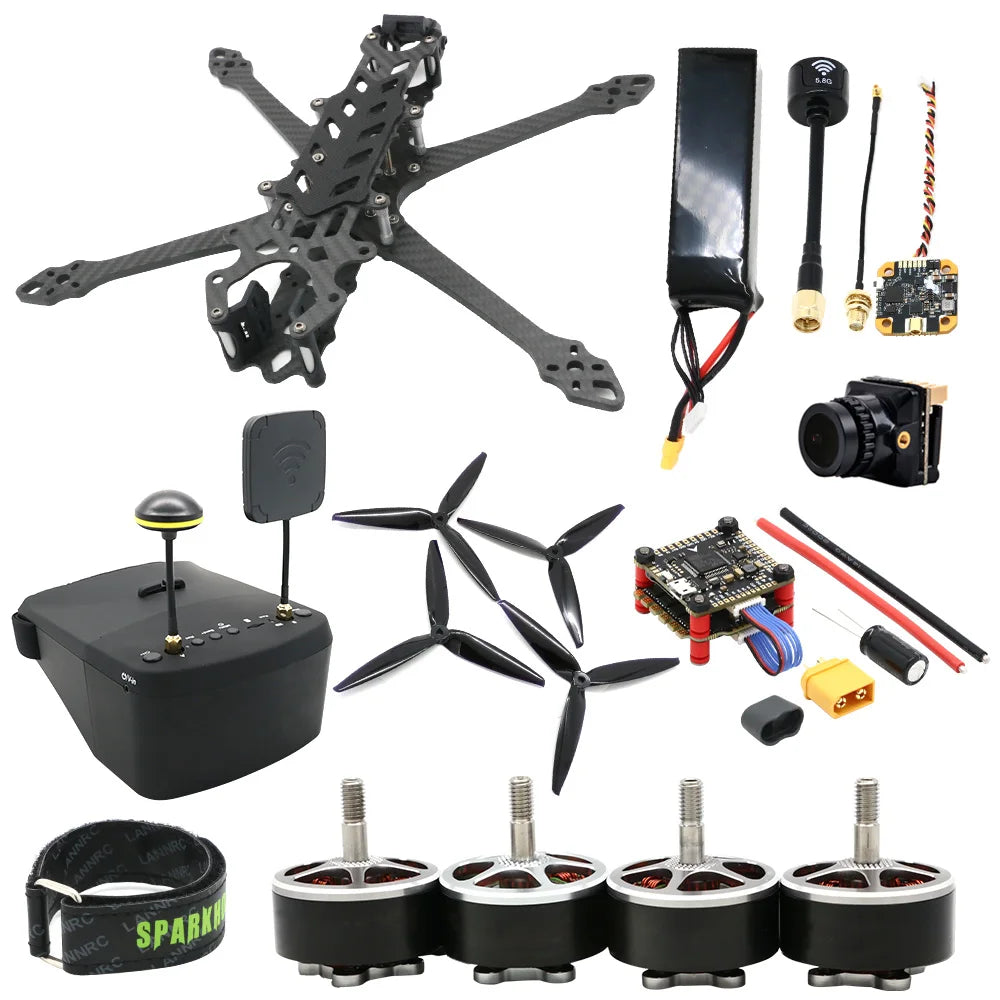

fpv drone build kit with goggles 7 Inch Long Range FPV Drone RTF Kit – 2810 Motors, F4 FC, 50A ESC, ELR – RCDroneOverview This 7 inch Long Range FPV Drone Kit is a complete high performance build, designed for freestyle and long distance exploration. Featuring a robust 295mm carbon fiber frame, powerful 2810 1500KV brushless motors, an F4 V3 flight controller, a reliable 50A 4 in 1 ESC, a 1300mW 5. 8GHz VTX, and an ELRS 915MHz receiver, this drone delivers excellent endurance, stability, and responsiveness. Paired with a 6S 3300mAh battery, it ensures impressive

Overview

This 7-inch Long Range FPV Drone Kit is a complete high-performance build, designed for freestyle and long-distance exploration. Featuring a robust 295mm carbon fiber frame, powerful 2810 1500KV brushless motors, an F4 V3 flight controller, a reliable 50A 4-in-1 ESC, a 1300mW 5.8GHz VTX, and an ELRS 915MHz receiver, this drone delivers excellent endurance, stability, and responsiveness. Paired with a 6S 3300mAh battery, it ensures impressive flight times and performance.

Key Features

  • 7" 295mm carbon fiber freestyle frame with replaceable 5.5mm arms and 3K carbon construction.

  • High-power 2810 1500KV brushless motors with 7075 aluminum bell, titanium hollow shaft, and Japanese NMB bearings.

  • F4 V3 Plus flight controller with STM32F405 MCU, BMI270 gyro, barometer, and MicroSD Blackbox support.

  • 4-in-1 50A ESC with BLS firmware, onboard current sensor, and anti-EMF filtering capacitors.

  • 1300mW adjustable 5.8GHz 40CH VTX with MMCX connector, 20x20mm mounting.

  • ELRS 915MHz Nano Receiver for long-range, low-latency control.

  • 22.2V 3300mAh 60C 6S LiPo battery for extended flight time.


Drone Frame Specifications

Item Specification
Frame Type 7" Freestyle Frame
Wheelbase 295mm
Arm Thickness 5.5mm
Top Plate Thickness 2.5mm
Frame Weight ~128.3g
Motor-to-Motor Size 281mm
Body Dimensions 330mm × 120mm
Material 3K Full Carbon Fiber
Hardware 7075-T10 Aluminum Screws

Design Highlights:

  • Top-mounted battery for optimal center of gravity (CG).

  • True X-Frame design for balanced flight dynamics.

  • Compact and durable construction.


Power System

Motor (2810 1500KV Brushless Motor):

  • KV: 1500KV

  • Suitable Voltage: 5-7S LiPo

  • Stator: 0.2mm Kawasaki silicon steel

  • Bearings: Japanese NMB 12x6x4

  • Rotor: N52H arc magnets

  • Shaft: Titanium Alloy Hollow Shaft (M5)

  • Mounting Pattern: 19×19mm (M3 bolts)

  • Weight: 65g with 25cm 18AWG silicone wires

  • Recommended Propellers: 6040, 7040, 6045, 7045

  • Recommended ESC: 45A–65A

ESC (4-in-1 50A Brushless ESC):

  • Size: 30.5mm×30.5mm (M4 mount)

  • Continuous Current: 60A

  • Burst Current: 70A (5s)

  • Firmware: BLS J_H_30_REV16_7

  • Features onboard current sensor and power stabilization.


Flight Controller

F4 V3 Plus Flight Controller:

  • MCU: STM32 F405

  • Gyroscope: BMI270

  • Barometer: BMP280

  • OSD: Configurable via Betaflight

  • Built-in Blackbox (MicroSD slot)

  • BEC Output: 5V 3A and 9V 3A

  • Mounting: 30.5mm × 30.5mm (M3 bolts)


Video Transmission

5.8GHz VTX (1300mW Adjustable):

  • Output Power: 0/25/200/400/800/1300mW

  • Channels: 40CH (A/B/E/F/R bands)

  • Input Voltage: 6V–36V

  • Mounting: 20×20mm

  • Antenna Connector: MMCX

  • Size: 28×28×6mm

  • Weight: 6g


Receiver

ELRS 915MHz Nano Receiver:

  • Frequency: 915MHz

  • Protocol: ExpressLRS

  • Antenna: T-type IPEX1

  • Input Voltage: 3.6V–5.5V

  • Weight: 0.6g

  • Size: 11mm×18mm


Battery

6S 3300mAh 60C LiPo Battery:

  • Voltage: 22.2V

  • Capacity: 3300mAh

  • Discharge Rate: 60C

  • Recommended for 7" long range and endurance flights.


Performance

Load Flight Time
No Load (Empty) ~10 minutes
Load 1kg ~8 minutes
Load 2kg ~5 minutes
Load 3kg ~3 minutes
  • Flight Speed: 70–90 km/h

  • Image Transmission Range: 3–5 km (open environment)
